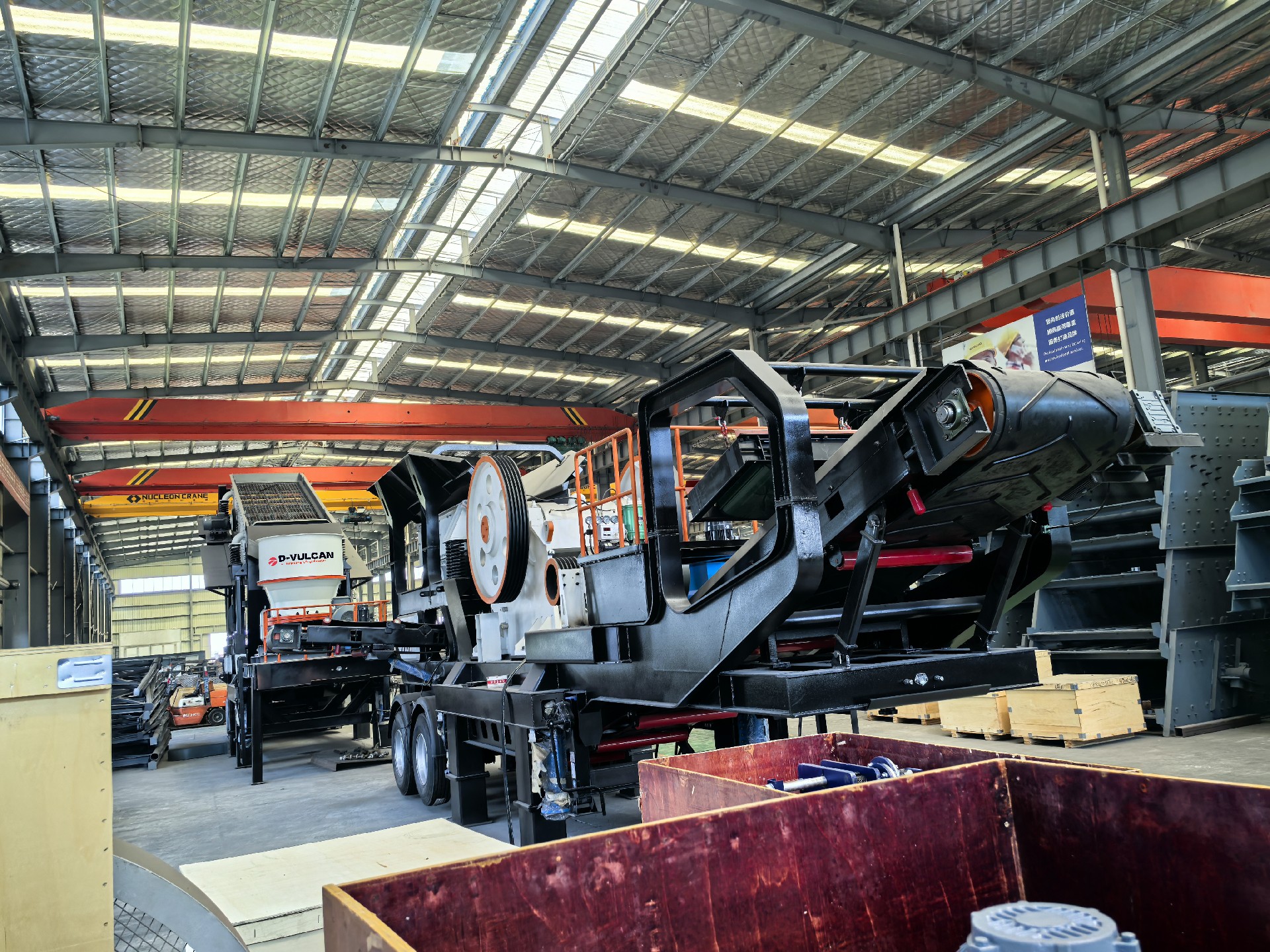

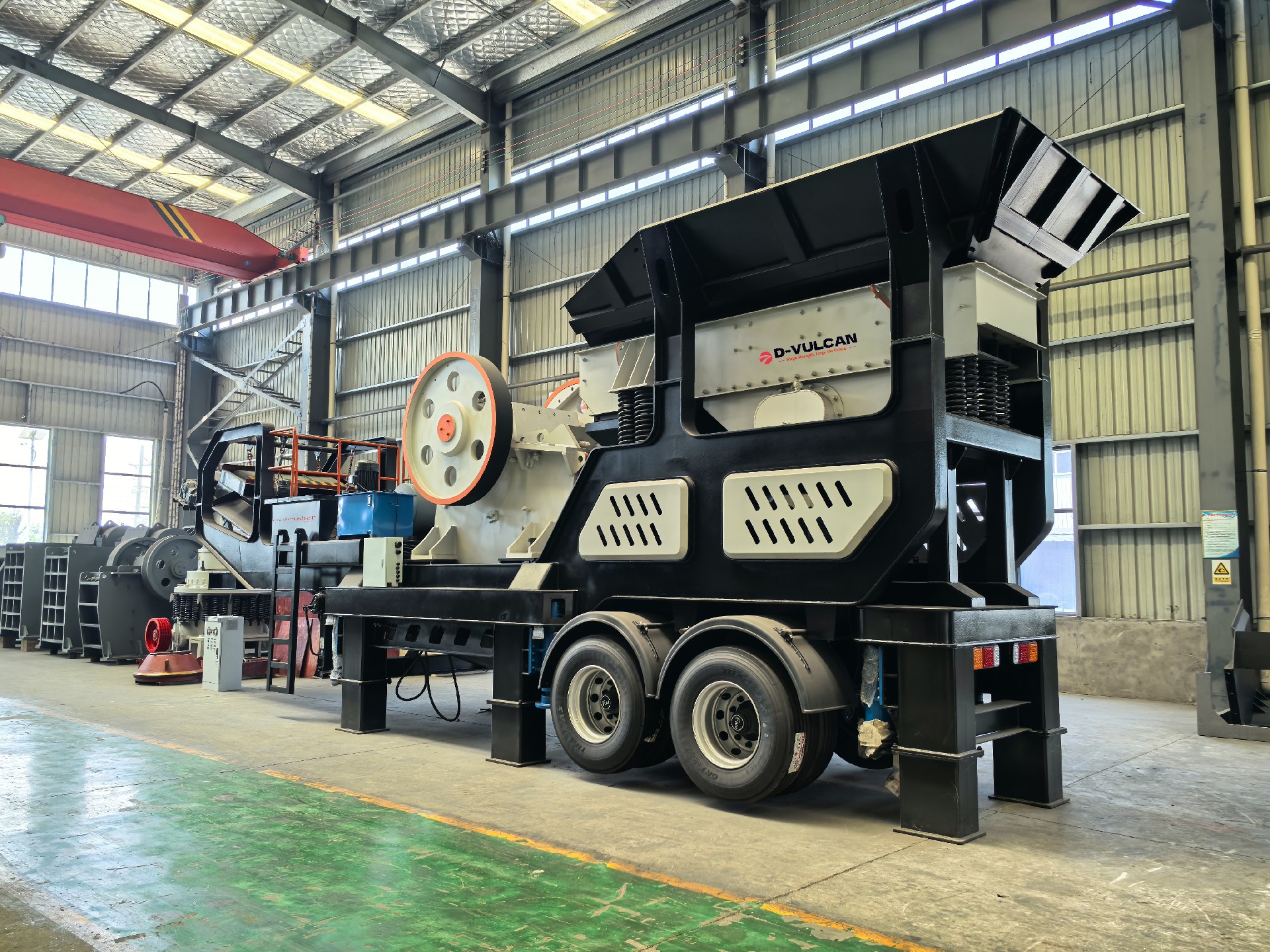

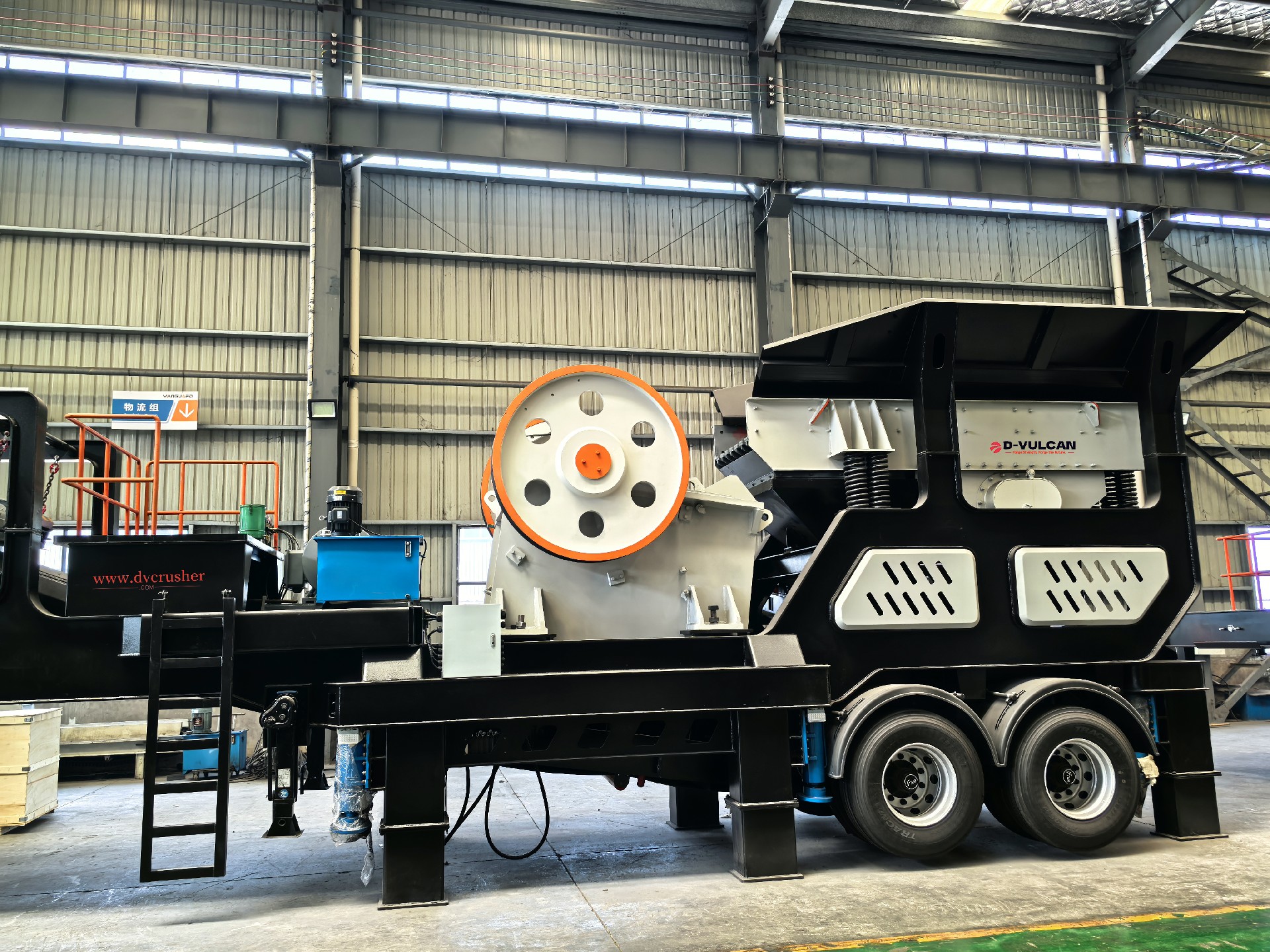

Mobile Jaw Crusher Plant
The Mobile Jaw Crusher with Tires is an innovative equipment that combines efficient crushing and flexible transfer, designed for construction waste disposal, mining and road construction. Equipped with a fully hydraulic tire chassis, 360° steering system and hydraulic outriggers, it can realize 30km/h self-propelled mobile operation, and switch between parking and crushing modes within 30 minutes, which can adapt to the needs of frequent transshipment. The core jaw module is made of high-strength manganese steel, with a maximum feed size of 800mm, a processing capacity of 80-650t/h, stepless adjustment of the finished product size from 30-300mm, and a granite crushing energy consumption as low as 1.5kW-h/ton (20% energy saving). Modular design can be quickly docked screening and conveying equipment to form a mobile crushing production line.
1. Easy to Move and High Crushing Efficiency
The high-performance jaw crusher, feeder, and vibrating screen form an integrated mobile crushing station that is easy to move and highly efficient.
2. Save Transportation Costs and Convenient to Put Into Production
The steering traction shaft can be directly moved to the site for operation, saving material transportation costs and making it convenient to put into production.
3. A Good Helper for Coarse Crushing and a Wide Range of Applications

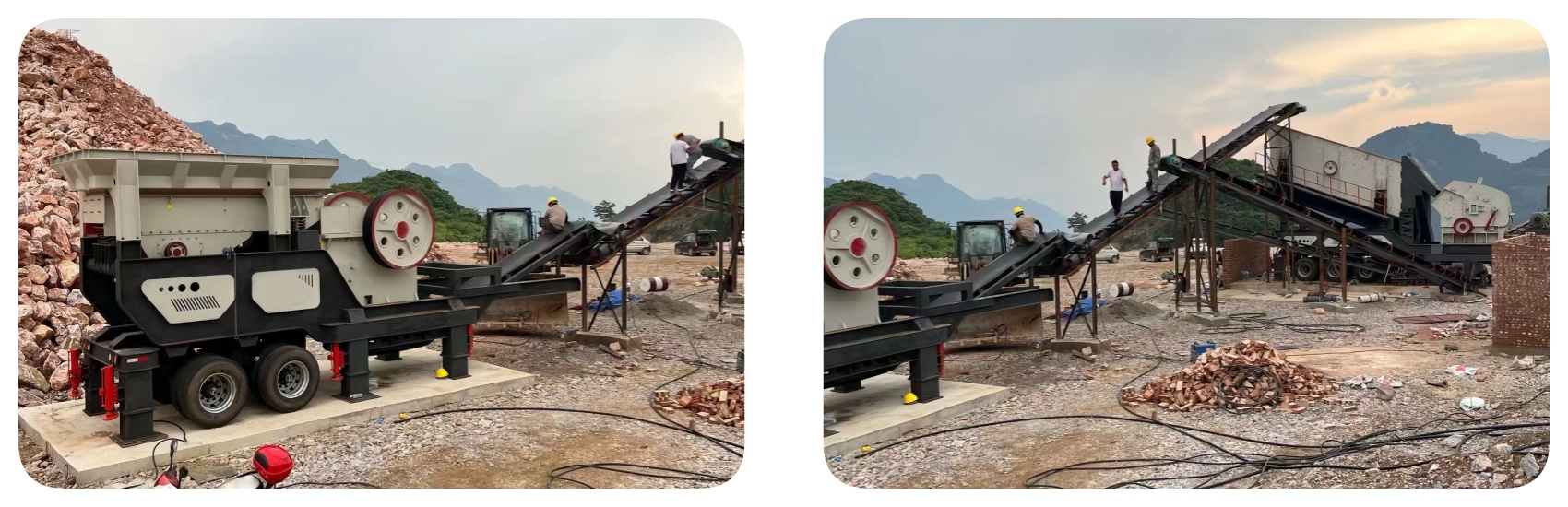

The mobile jaw crusher plant is a good helper for the coarse crushing of stones, which can be used for road construction, construction, waste recycling projects, etc.
4. Flexible Configuration and Strong Crushing Capacity
The mobile jaw crusher plant can be configured with many models, with strong crushing capacity and high efficiency. It is a representative of vehicle-mounted mobile crushing equipment.
High crushing efficiency: grate plate design, rigid hard extrusion crushing, making the fine crushing efficiency greatly improved.
Environmental and energy saving: high speed and fast operation , save electricity and reduce consumption.
Wear-resistant parts durable: more durable with wear-resistant parts material.
Low maintenance cost: compared with traditional pulverizer, energy saving is better, stable operation, maintenance cost is lower.
Working Principle

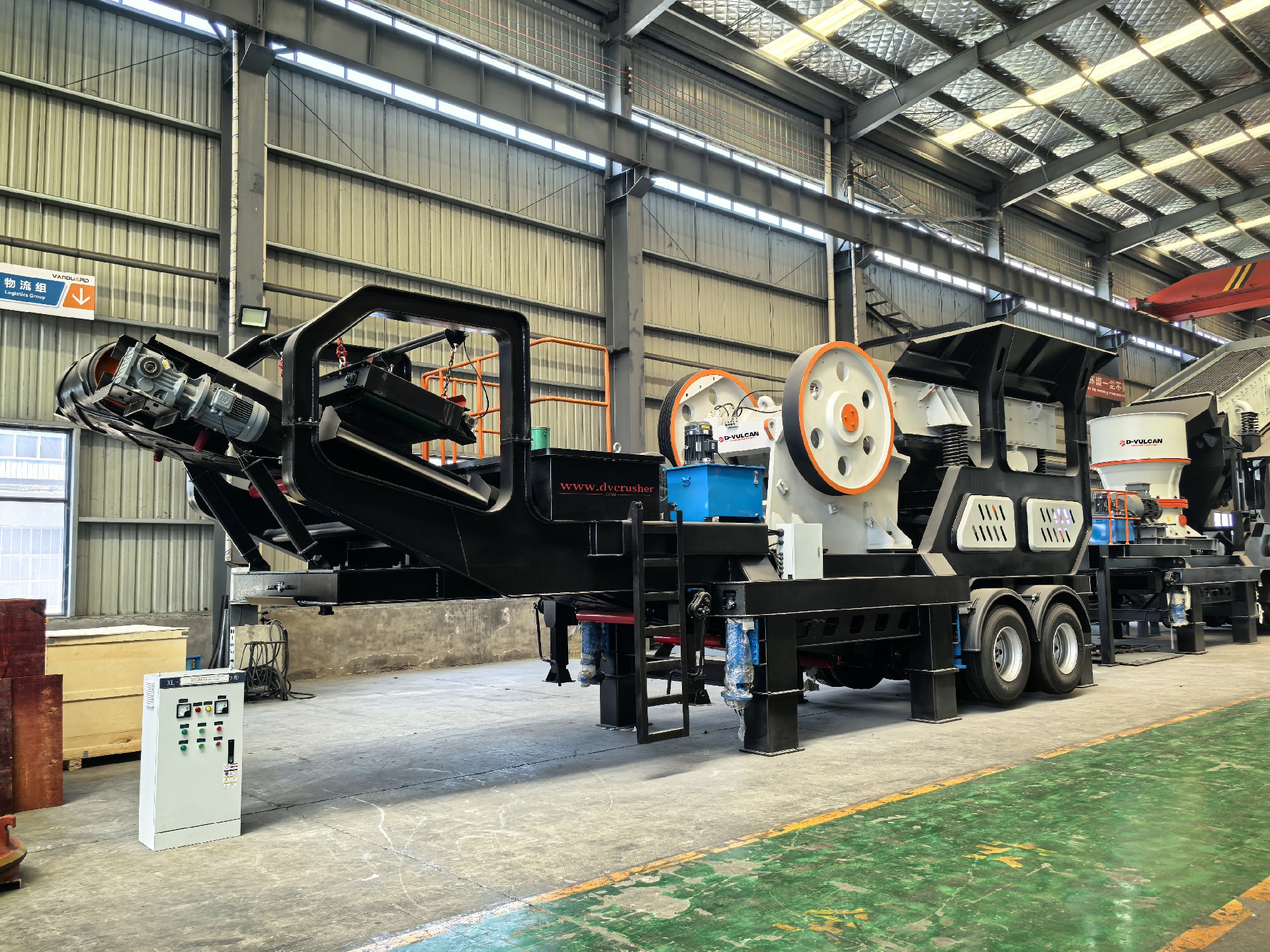

The working principle of the tire mobile jaw crusher is to convey the materials evenly into the crusher through the feeder. After preliminary crushing by the jaw crusher, a closed-circuit system is formed through the circular vibrating screen to realize the cyclic crushing of materials. The finished materials are output from the conveyor for continuous crushing. Wheeled jaw crusher equipment can remove the round vibrating screen according to the actual production needs, and directly realize the preliminary crushing of materials. It is convenient and flexible to be used with other crushing equipment.
Model | SMC600 | SMC750 | SMC900 | SMC1060 | SMC1200 | SMC1300PEX |
Transport size | ||||||
Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 |
Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 |
Alex weight(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 |
King pin weight(kg) | 5118 | 7500 | 10890 | 19450 | 34000 | 10490 |
Jaw crusher | ||||||
Model | PE | PE | PE | PE | PE | PEX |
Feed opening(mm) | 400X600 | 500X750 | 600X900 | 750X1060 | 900X1200 | 300X1300 |
Discharging hole setting range(mm) | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 |
Capacity(t/h) | 15-60 | 40-110 | 90-180 | 110-380 | 220-450 | 30-105 |
Feeder | ||||||
Feed hopper volume | 3 | 4 | 7 | 10 | 10 | 3 |
Hopper width | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 |
Model | ZSW6520 | ZSW8530 | ZSW9638 | ZSW1142 | ZSW1349 | ZSW8530 |
Belt conveyor | ||||||
Model | B650X6 | B800X7 | B1000X8 | B1000X11 | B1200X13 | B1000X7 |
*The output will vary according to different materials, feed particle size and other factors
