Quarries, gold mines, construction industry, mining, chemical industry

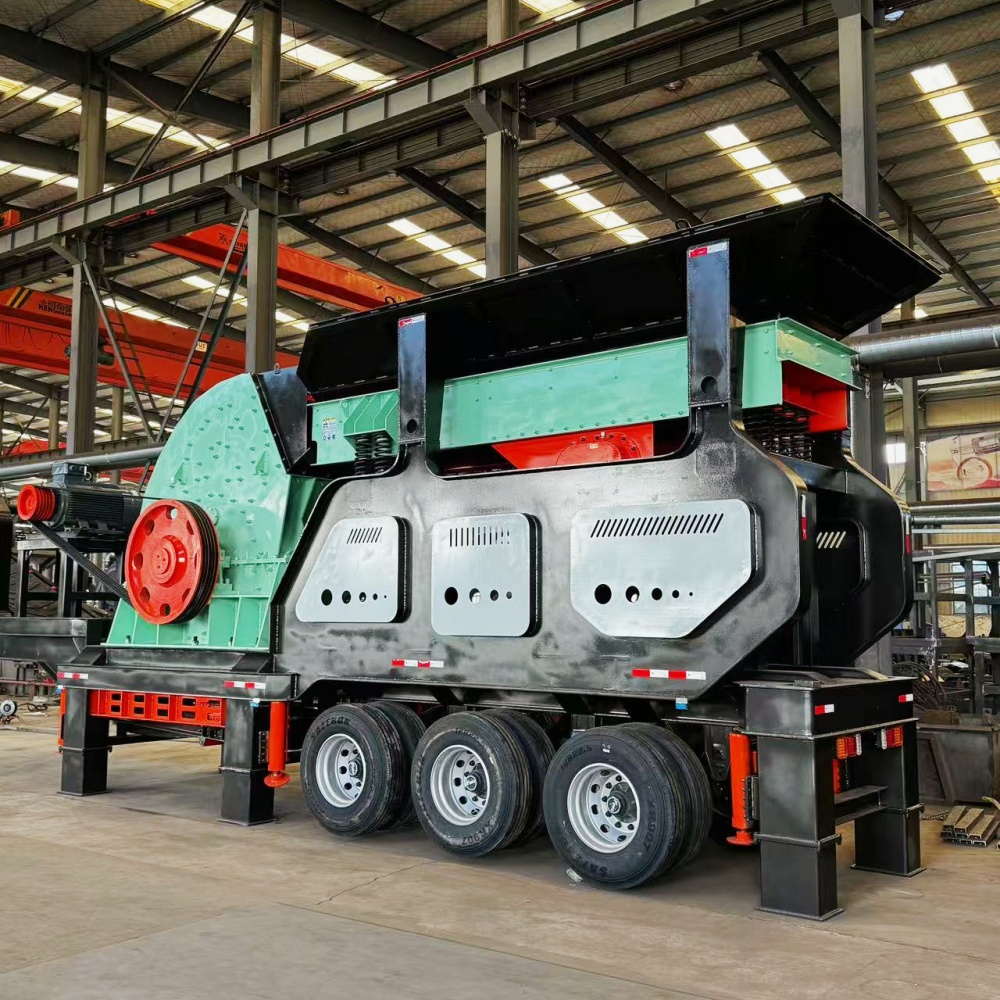

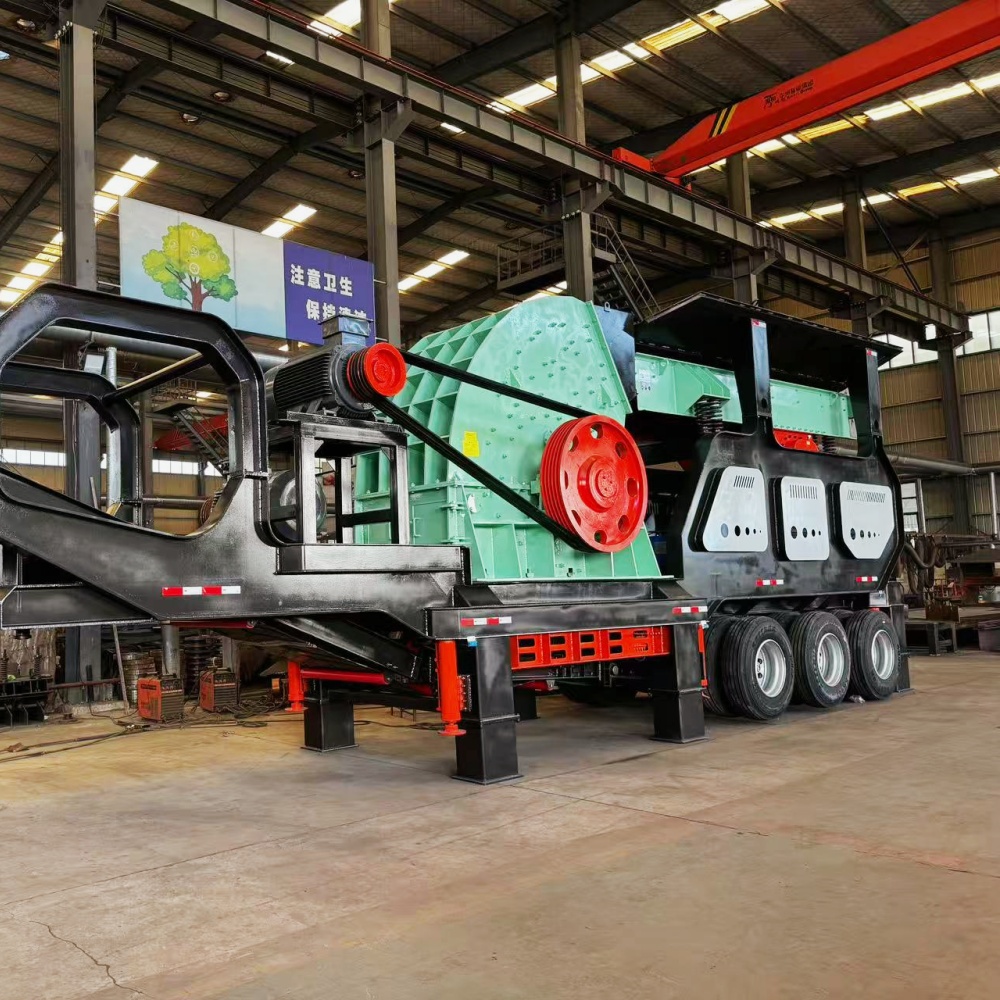

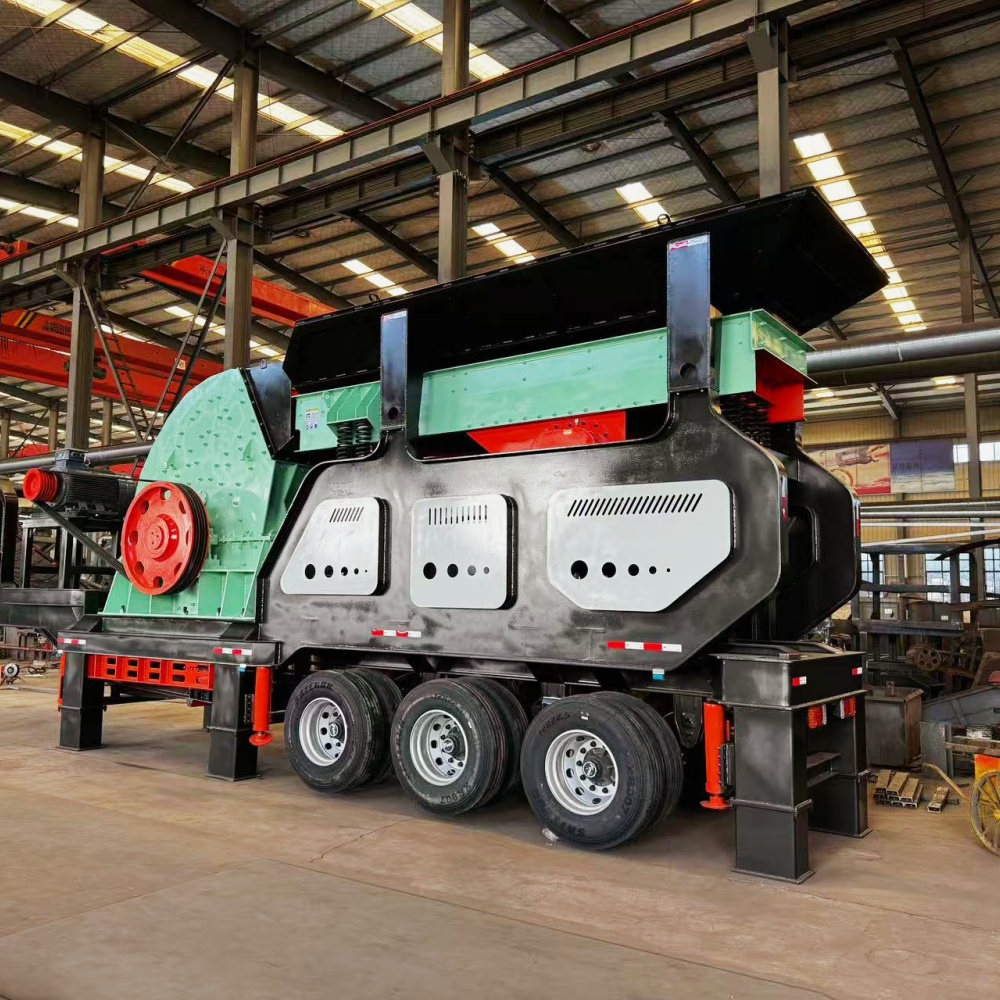

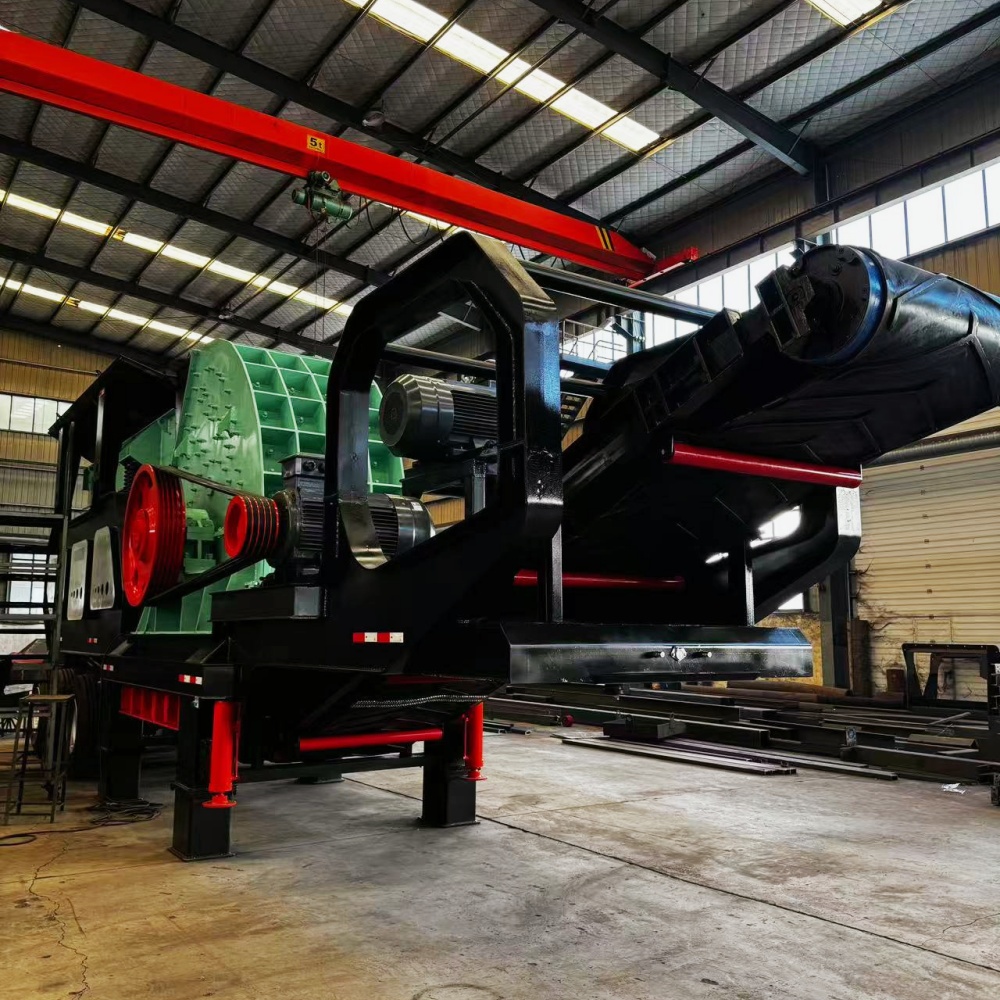

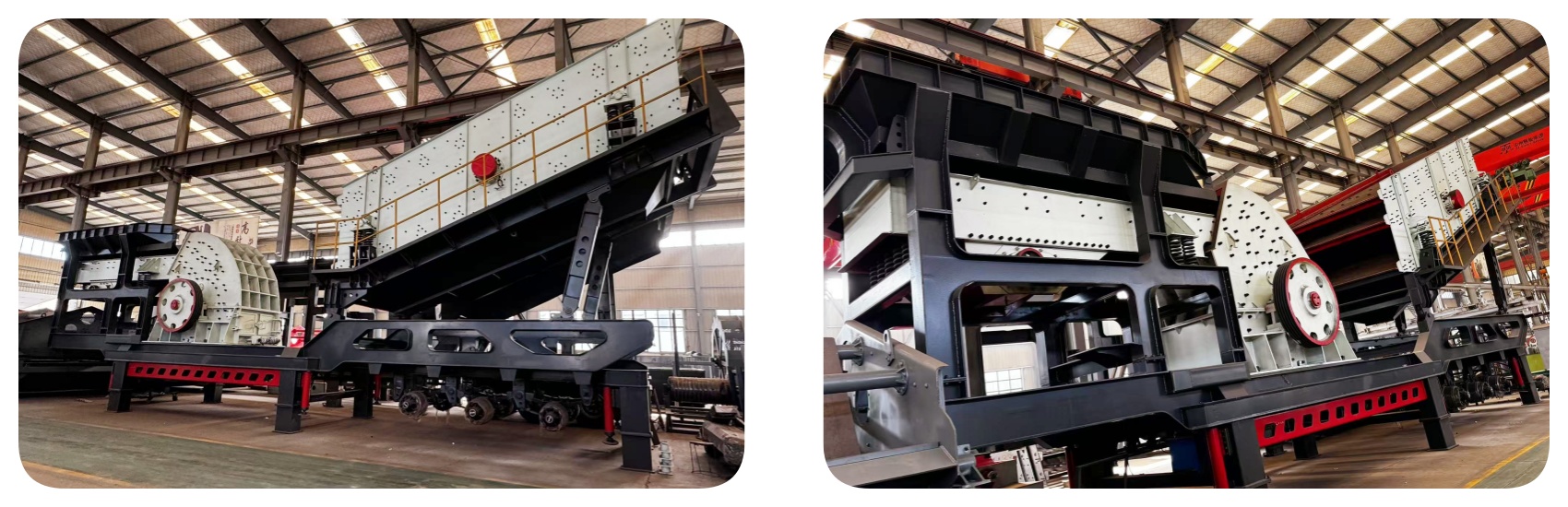

Heavy hammer mobile crushing station
Heavy hammer mobile crushing station adopts mature technology, has the characteristics of high efficiency and energy saving, can achieve one-time crushing effect, especially for medium hardness and brittle materials, can achieve perfect fine crushing effect. In order to meet the different requirements of customers, the discharge particle size can be adjusted by adjusting the grate plate gap.
High Production Capacity
The feed size of the hammer crusher can reach 750mm, and the output of a single hammer crusher can reach 3,000 tons.
Perfect finished particle size
Heavy-duty hammer crushing and large feed particle size, small discharge particle size, one-time molding system. The size of the discharge particle size can be adjusted according to customer requirements to meet different needs.
Environmental Protection and Less Pollution
It can crush wet materials, that is, water can be added when crushing wet materials to reduce dust pollution and protect the health of workers and the environment.
High crushing efficiency: grate plate design, rigid hard extrusion crushing, making the fine crushing efficiency greatly improved.
Environmental and energy saving: high speed and fast operation , save electricity and reduce consumption.
Wear-resistant parts durable: more durable with wear-resistant parts material.
Low maintenance cost: compared with traditional pulverizer, energy saving is better, stable operation, maintenance cost is lower.
The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feed port and crushed by the impact of hammers. A sieve plate is installed at the bottom of the rotor. After crushing, the material smaller than the sieve hole size is discharged through the sieve plate, and the material larger than the sieve hole size is retained on the sieve plate and continues to be hit and ground by the hammers and discharged through the sieve plate.
SMC Impact crusher | SMC1010PFS | SMC1210PFS | SMC1214PFS | |
Transport size | ||||
Length(mm) | 10800 | 12200 | 12500 | |
Width(mm) | 2480 | 2743 | 2900 | |
Height(mm) | 4170 | 4200 | 4200 | |
Alex weight(kg) | 15900 | 17200 | 22100 | |
King pin weight(kg) | 11300 | 14300 | 17500 | |
Impact crusher | ||||
Model | PF1010 | PF1210 | PF1214 | |
Feed opening(mm) | 400X1080 | 400X1080 | 400X1080 | |
Vibrating screen | Vibrating screen | |||
Model | 4YK1235 | 4YK1545 | 4YK1548 | |
*The output will vary according to different materials, feed particle size and other factors
